Electric Forklift Trucks RX 20 1.4-2.0 t

Electrifying

  • Load capacity 2000 kg
  • Rated lift 7930 mm
  • Speed 20 km/h

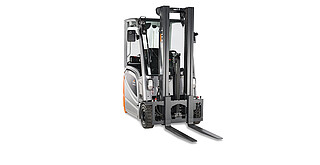

The STILL RX 20
OUR POWERHOUSE

For those who like to get things done.

You always want more? So do we. The STILL RX 20 delivers more in every capacity: more performance, more dynamism and more availability. The latest generation of STILL’s top-selling electric forklift truck is the best RX 20 that STILL ever developed.

In a warehouse, everything needs to be perfect. Therefore, the energetic RX 20 is not only powerful but also agile, getting you and your goods wherever you are going, fast. Plus, its excellent visibility and comfortable operator’s cabin allow you to work to the utmost level of precision. And all this with plenty of stamina, thanks to an unparalleled range of battery variants.

The RX 20 - ensures you get things done!

NEW

Non-binding offer

RENTAL

Non-binding rental offer

USED

Our used trucks offer

Request to: RX 20 1.4 – 2.0 t

Please fill out the form below. We will get back to you as soon as possible.

Salutation*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Quickly moves goods from A to BCDEFGHIJKLMNOPQRSTUVWXYZ

The new RX 20 impresses with outstanding lifting speeds and can accelerate up to 20 km/h. Due to di erent operating programs, it can achieve both optimum performance and unrivalled e ciency values, while the Performance-Boost allows even the heaviest loads to be handled in sprint mode. It’s no wonder that the RX 20 can achieve the highest handling performance in its class, with the lowest energy consumption per tonne handled.

Operating power tailored to your specifications →
A perfect visibility IN EVERY DIRECTION. →
Perfect all-round visibility for exceptional safety at work. →
STILL Easy View Mast →

Operating power tailored to your specifications

Wide variety of equipment options for every application

A perfect visibility IN EVERY DIRECTION.

Safety comes first and this couldn’t be more true for the new RX 20. Therefore, it is equipped with a particularly slim mast and extra large windows that allow a clear view on all sides and upwards. This does not only look good but helps to identify possible hazards faster than ever before.

Perfect all-round visibility for exceptional safety at work.

Slim mast and extra-large windows

STILL Easy View Mast

The STILL Easy View mast increases the efficiency of the internal flow of materials, in particular on long driving distances.This mast design is the new benchmark to move material from goods-in to goods-out or for transfer bays in front of narrow aisle racks or production halls when safety and maximum turnover speed are required at the same time.

Head and shoulders above the rest, EVEN IN THE TIGHTEST OF SPOTS.

To impress in the warehouse, you need to be able to perform in even the narrowest spaces – no problem for the new RX 20. Its compact truck dimensions and precise control system ensure outstanding manoeuvrability. With the new combination axle for four- wheel-drive trucks, it achieves the smallest turning radius in its class.

Impressive agility and precise manoeuvrability. →
Like sitting in a jet, BUT WITH MORE LEGROOM. →
Safe entry →

Impressive agility and precise manoeuvrability.

Combi floating axle improves the working aisle widths

Like sitting in a jet, BUT WITH MORE LEGROOM.

The best way to work: the operator’s cabin of the new RX 20 offers an unparalleled level of comfort. It is extremely spacious, with plenty of legroom and numerous storage options. All safety and performance functions can be conveniently monitored with an intelligent display and control unit (STILL Easy Control).

Safe entry

Large handle, anti-slip rubber mat and wide step

1 charge. 302 LOADS.

The new RX 20 boasts the largest range per battery charge and can also utilise a wide range of battery variants, boasting the fastest lateral battery change process in its class. Also, if you want to remove the term “battery change” from your working vocabulary entirely, the STILL Li-Ion is exactly the availability boost you need. Rapid interim charging is su cient to keep the RX 20 going around the clock – on just a single battery.

Battery change over the side for maximum availability →

Battery change over the side for maximum availability

Ultra-fast: easy-to-operate lateral battery change


The RX 20 1.4 – 2.0 t in detail

The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency

Simply easy

Intuitive handling:
standard, easy-to-use operating concept across the whole RX product line

Efficiency-enhancing:
easy entry into a highly ergonomic driver’s cab

STILL Easy Control on-board computer:
all relevant information at a glance and performance functions just a click away

Ultra-fast:
easy-to-operate lateral battery change

Simply powerful

Intralogistics powerhouse:
highest handling performance of its class

Performance boost:
sprint mode for peak performance at the touch of a button

Optimum energy efficiency:
exceptionally long range with each battery charge

Intelligent support:
traction control and other assistance functions

Ready at all times:
optional STILL lithium-ion technology for maximum availability

Simply safe

Safe and precise handling:
high-precision hydraulics and agile driving dynamics

Safe entry:
large handle, anti-slip rubber mat and wide step

Optimal panoramic view:
slim mast and extra-large windows

Systematic safety:
optional pre-shift check on the display to help with the daily safety inspection

Safety for every application:
wide range of additional equipment options – from a direction indicator on the display to the Safety Light 4Plus safety lighting, as well Curve Speed Control for automatic speed reduction when cornering

Simply flexible

Customised control options:
multi-lever, mini-lever, Fingertip or Joystick 4Plus

Adjustable performance dynamics:
parameters such as driving and lifting speed can be adjusted to personal preferences at the touch of a button

Operating power tailored to your specifications:
wide variety of equipment options for every application

Flexible, decentralised charging:
Onboard Charger enables simple, fast and location-independent charging processes

Simply connected

Optimum networking:
optional interface for integration into fleet management software such as STILL neXXt fleet

Controlled use:
optional access control protects against incorrect operation

STILL Li-Ion Technology inside

The perfectly harmonised power system for reducing operating costs and increased truck availability.

More about STILL Li-Ion Technology

Applications

Work fast and safely

thanks to excellent visibility over and past the Easy View mast

Swivel seat

Handle with optional horn operation for ergonomic reverse driving Battery change.

SafetyLight 4 Plus

The visual warning system for fewer accidents. The blue warning light, STILL SafetyLight 4plus, significantly increases work safety in areas which are confusing or full of bends.

Optimal view

of fork tips when loading HGVs.

View upwards

Optimal view of the load.

Highest handling performance

of its class.

STILL warning zone light

The blue warning light, STILL SafetyLight 4plus, significantly increases work safety in areas which are confusing or full of bends. The blue light spots are projected approx. 5 m in front of and behind the truck and warn people about the approaching truck to prevent impending collisions.

Dynamic acceleration

20 km/h maximum speed, precise manoeuvrability – with these trademark features, the RX 20 achieves the highest ever handling performance in the load range from 1.4 to 2 tonnes.

Safe entry

Easy entry into a highly ergonomic driver’s cab

Optimum availability

Optional onboard charger for decentralized charging without battery replacement

Request to: RX 20 1.4 – 2.0 t

Please fill out the form below. We will get back to you as soon as possible.

Salutation*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Forklift truck tests

Independent forklift truck test F+H

„After the test drives we are impressed by the character of the RX 20. We haven‘t tested a truck that reacts faster to the driver‘s commands in this segment.“

„The new RX 20 can also convince us in terms of energy consumption. Even in the maximum setting, the test device is clearly below the average in this ranking.“

“...we achieve an arithmetical output of 430 pallets per eight hours. This means that the RX 20 surpasses the highest of us to date in of this forklift class.“

<h3>Independent forklift truck test F+H </h3>„After the test drives we are impressed by the character of the RX 20. <strong>We haven‘t tested a truck that reacts faster to the driver‘s commands in this segment.“</strong><br /><br /> „The new RX 20 can also convince us in terms of energy consumption. <strong>Even in the maximum setting, the test device is clearly below the average in this ranking.“</strong><br /><br /> “...we achieve an arithmetical output of 430 pallets per eight hours. <strong>This means that the RX 20 surpasses the highest of us to date in of this forklift class.“</strong>
+17% acceleration
Sprint over 27,2 M (s)
7,1 s
Sprint Mode
7,9 s
Efficiency Mode
8,6 s
Test average
+48% faster lifting
Lifting speed with 1000 kg load (cm/s)
65,1 cm/s
Sprint Mode
55,6 cm/s
Efficiency Mode
44,0 cm/s
Test average
+109% availability
Operating time (h)
14,0 h
Sprint Mode
16,1 h
Efficiency Mode
7,7 h
Test average
+26% speed
Driving speed with 1000 kh load (km/h)
19,0 km/h
Sprint Mode
15,8 km/h
Efficiency Mode
15,1 km/h
Test average

VerkehrsRundschau

"The STILL RX 20 is the best truck ever tested at the "Verkehrsrundschau."

<h3>VerkehrsRundschau</h3>"The STILL RX 20 is the best truck ever tested at the "Verkehrsrundschau."
Performance
e.g. Dynamic reversing, tight turning cicle, Easy Control, Control unit
1,4 very good
Working performance
1,4 very good
Steering/ steering wheel
1,3 very good
Fork control
1,2 very good
Display
Safety
e.g. EASY View mast, Curve Speed Control, Safety Light 4Plus, Steering column adjustable in 3 stages
1,2 very good
Visibility
1,6 good
Safety features
1,5 good
Workplace
1,9 good
Entry/ exit
Comfort
e.g. Smartphone holder, Lumbar support, Armrest, Direction change on steering wheel and armrest
1,2 very good
Storage
1,5 good
Drivers seat
1,3 very good
Armrest
1,5 good
Secondary switches
Quality
e.g. charge indicator on battery, no battery maintenance, high metal content, extensive equipment
1,2 very good
Energy system
1,6 good
Quality / Finish
1,2 very good
Maintenance
1,5 good
Standard equipment

Media Centre

{{ filteredVideos.length }} Videos

Model Overview

Model
Maximum capacity (kg)
Maximum lift height (mm)
Travel speed (km/h)
Battery voltage (V)
RX 20-14C/Li-Ion 1.400 7.870 20 48
RX 20-16C/Li-Ion 1.600 7.870 20 48
RX 20-16/Li-Ion 1.600 7.870 20 48
RX 20-16L/Li-Ion 1.600 7.870 20 48
RX 20-18/Li-Ion 1.800 7.720 20 48
RX 20-18L/Li-Ion 1.800 7.720 20 48
RX 20-20L/Li-Ion 2.000 7.930 20 48
RX 20-16P/Li-Ion 1.600 7.870 20 48
RX 20-16PL/Li-Ion 1.600 7.870 20 48
RX 20-18P/Li-Ion 1.800 7.720 20 48
RX 20-18PL/Li-Ion 1.800 7.720 20 48
RX 20-20P/Li-Ion 2.000 7.930 20 48
RX 20-20PL/Li-Ion 2.000 7.930 20 48

Downloads

  • Data Sheet RX 20 1,4 - 2,0 t PDF, 3 MB Download
  • Product brochure RX 20 1,4 - 2,0 t PDF, 1 MB Download
  • Operating instruction RX 20 1,4 - 2,0 t PDF, 62 MB Download
  • Operating instruction STILL Easy Control PDF, 16 MB Download
  • Operating instruction RX 20 Explosion protection PDF, 54 MB Download
  • ECH-BC 13 Flyer PDF, 2 MB Download

The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
